Heavy‑duty aluminium canopy for 2011–2022 Ranger PX 1–3 Super Cab

Engineered for Australian worksites and remote touring, the Xpedition CapRax Canopy is a purpose-built aluminium Ford Ranger PX canopy that balances strength, security, and payload efficiency. Weighing 80 kg yet rated to 250 kg dynamic / 500 kg static roof load (destruction-tested to 7.6 tonnes), it’s a proven solution for tradies, overlanders, and fleet operators who need secure storage and serious rooftop capacity.

---

Fully welded aluminium construction (lightweight, rigid, corrosion-resistant)

Built from 2.5 mm TIG-welded automotive-grade aluminium in a monocoque design, the canopy distributes torsional stress more effectively than riveted or spot-welded shells. The powder-coated finish resists corrosion in coastal and outback environments while preserving a clean, professional appearance.

---

Proven load integrity: 250 kg dynamic / 500 kg static (7.6 t tested)

The canopy’s roof system is certified for 250 kg dynamic loading—ideal for rooftop tents, recovery boards, racks, and solar—while the 500 kg static rating (verified beyond 7.6 t in destruction testing) provides a substantial margin for real-world, high-load scenarios.

---

Solid aluminium gullwing doors for secure, dust-sealed access

Solid aluminium gullwing side doors eliminate the break-in vulnerability of glass and help protect valuable tools and equipment. Each door uses twin, dust-proof keyed-alike compression locks and automotive-grade EPDM seals to keep out water, red dust, and road grime.

---

Dust control and weather protection

A forward-facing positive-pressure vent maintains interior over-pressure at speed, reducing bulldust ingress on corrugated tracks. Combined with 360° EPDM perimeter sealing, the canopy is designed for remote area travel and harsh site conditions.

---

No-drill factory mounting preserves vehicle integrity

Vehicle-specific brackets bolt to factory tub points—no drilling required. This preserves corrosion protection, simplifies compliance, and allows easy transfer to another Ranger PX Super Cab if required.

---

Modular Accessory Integration with CapRax Ecosystem

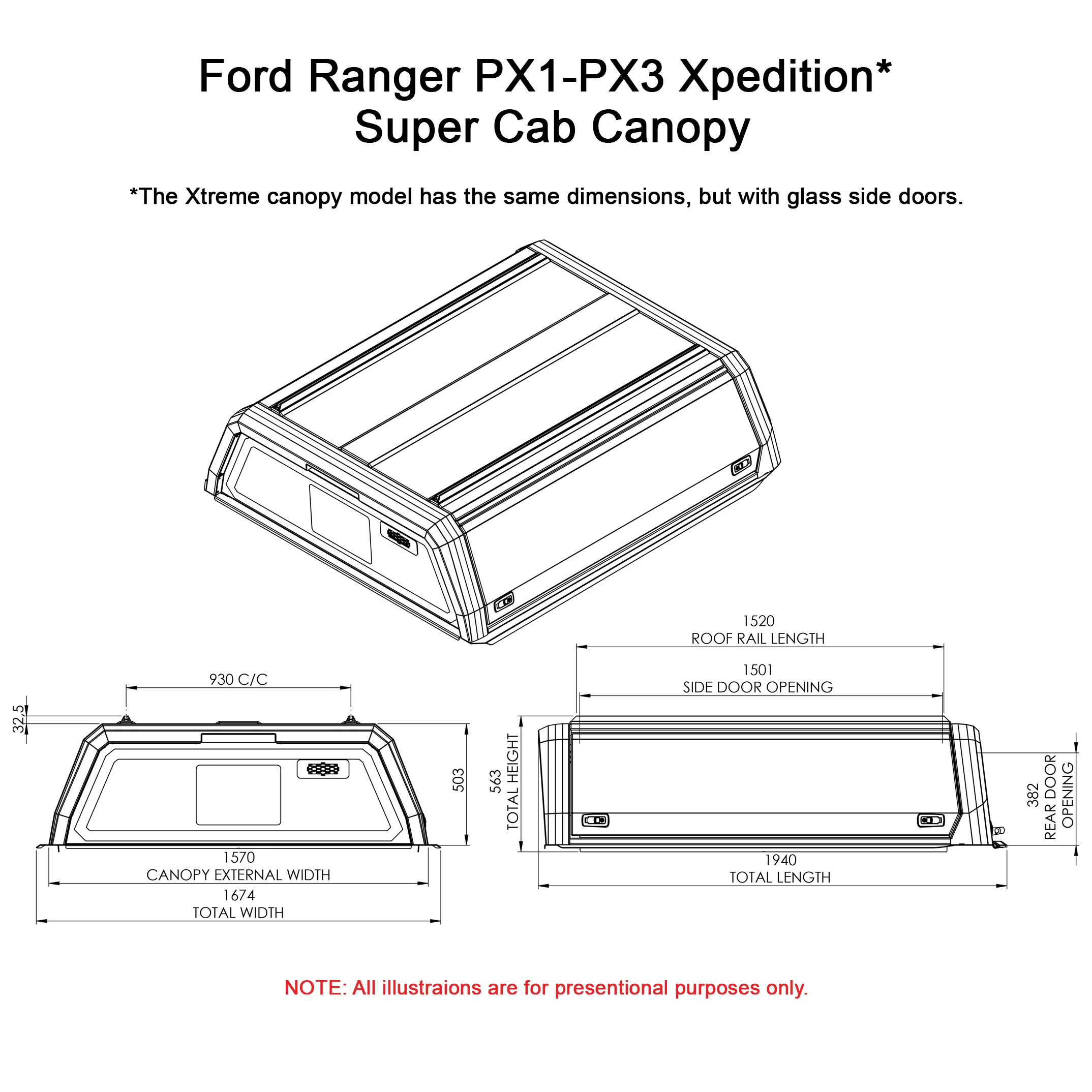

Designed for full compatibility with the CapRax system, the canopy includes twin 1520mm M8 roof extrusion channels, this supports bolt-on installation

of rooftop tents, roof racks, and load bars

In addition there are internal nutserts and extruded channels for mounting the any of the CapRax modular accessory range including, side shelf units, drop down camping tables, and storage racks/slides.

No cutting or drilling is required to mount accessories, enabling clean, efficient customisation for trade or touring builds.

---

Built for trade, touring, and fleet deployments

From professional tool security to off-grid touring setups, this canopy supports heavy rooftop equipment, dustproof storage, and fast modular fit-outs. Its strength-to-weight efficiency (3.13 kg roof load per kg canopy) helps preserve payload for gear and passengers.

---

Specify a canopy that’s built to carry, seal, and secure—on the job, on the highway, and off the map.

Ford Ranger PX Super Cab Xpedition Key Features

• Gullwing doors at sides and rear.
• Bonded toughened glass rear door with aluminium frame.
• Sliding window in at the front of the canopy (cab end)
• 100% automotive grade aluminium construction
• Weighs 80Kg
• Stylish rounded frame corners with heavy duty internal gussets
• Dynamic load rating of 250Kg
• Static load rating of 500kg
• Full extruded roof rails (M8 channel) for easy accessory mounting
• Integrated positive airflow vent at front of canopy
• Dust Proof Key-Alike Locks (2 locks per door)
• Rear brake light In rear window (needs to be wired into vehicle)
• Easy mounting brackets that use existing factory mounts.
• 2-Year manufacturers warranty (see Warranty tab for details)
