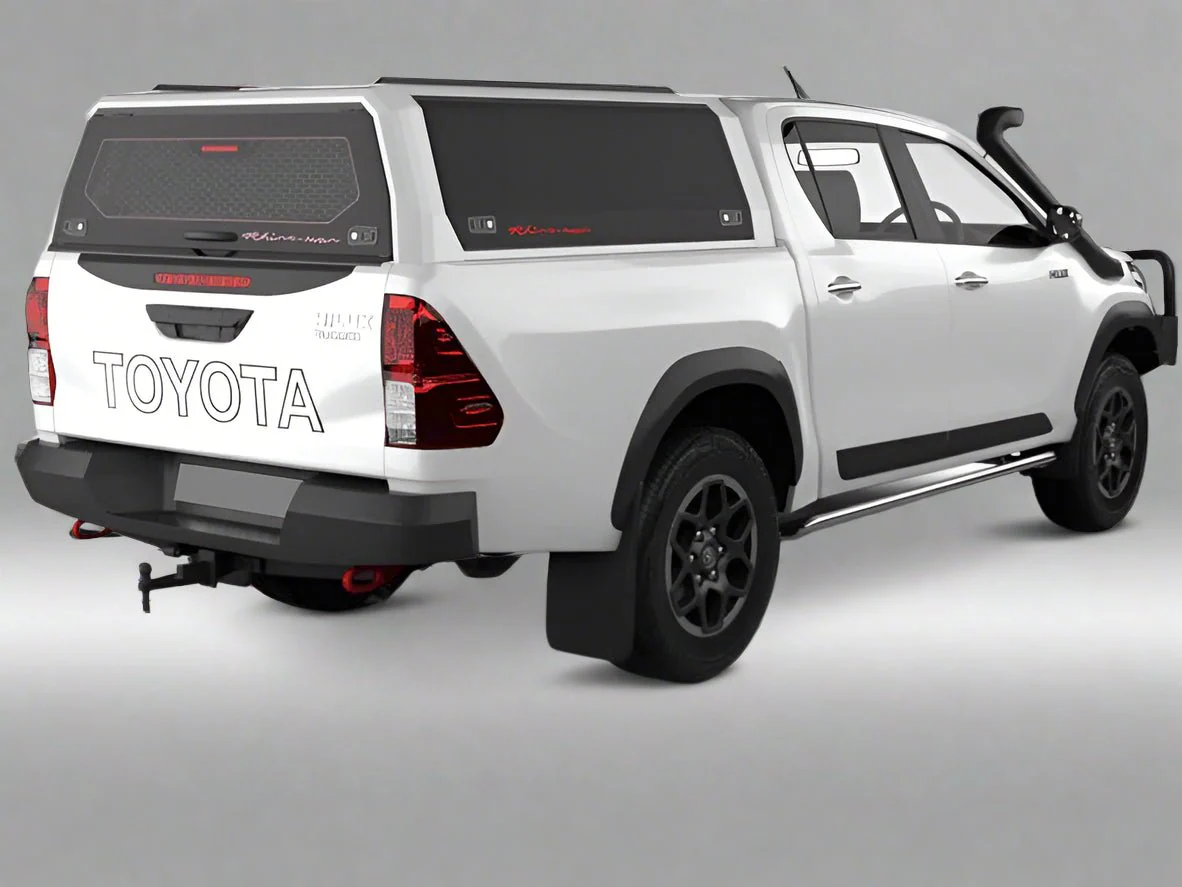

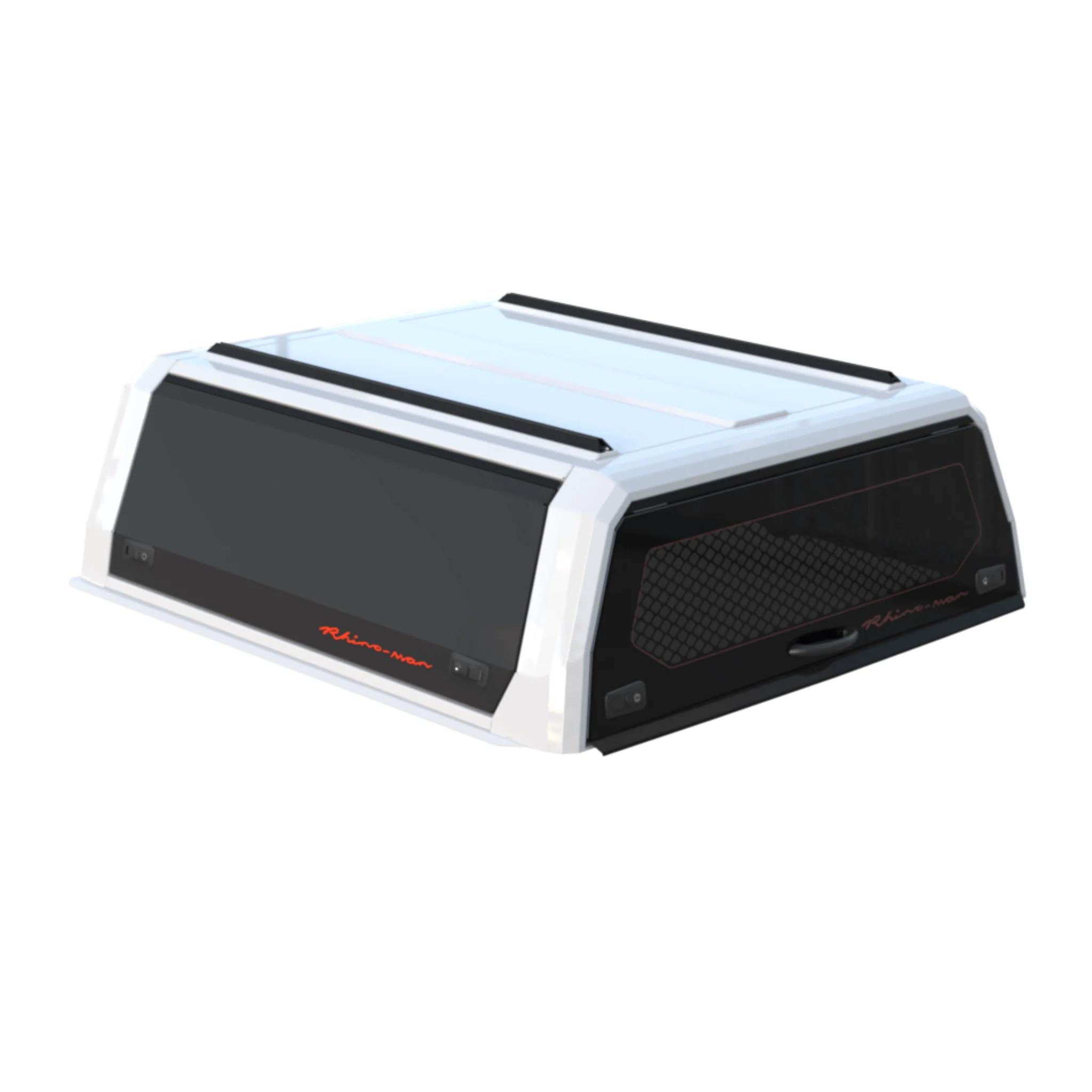

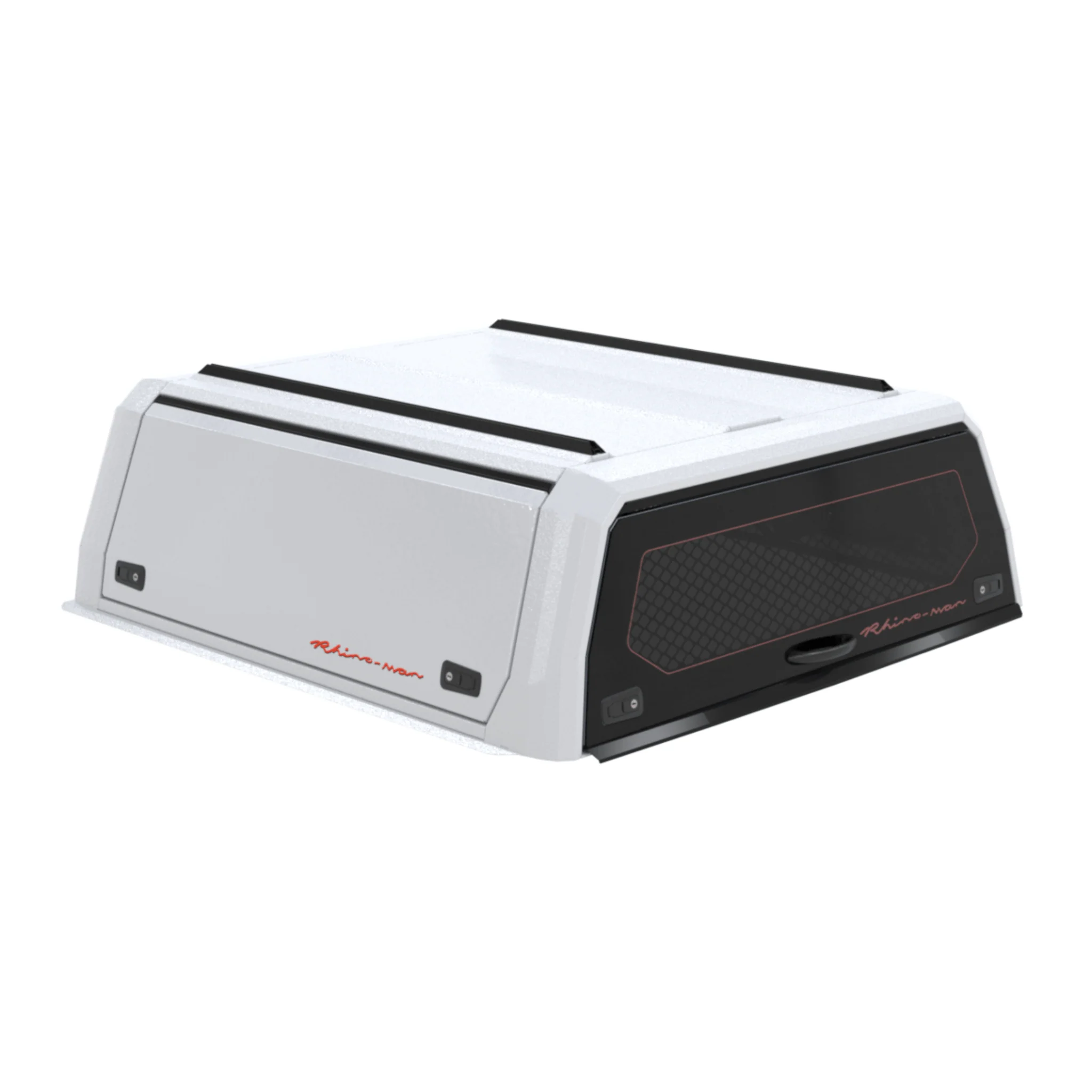

Hilux 2015+ Dual Cab Xpedition CapRax Canopy by Rhinoman

Toyota Hilux 2015+ Dual Cab Xpedition CapRax Canopy by Rhinoman

Lightweight, Heavy-Duty Aluminium Canopy for Tradies, Touring & Off-Roading

Built for the unique challenges of Australian conditions, the Xpedition CapRax Canopy is a premium aluminium canopy solution tailored to the Toyota Hilux 2015+ dual cab. Designed for tradies, fleet managers, and 4WD adventurers alike, it delivers best-in-class strength, weight efficiency, and total modular compatibility for touring or professional builds.

---

Rugged Construction with Class-Leading Weight Efficiency

At just 74kg, this canopy combines lightweight performance with structural strength thanks to its 2.5mm TIG-welded aluminium monocoque design. Reinforced internal gussets and a corrosion-resistant powder-coated finish provide durability on remote work sites, rough tracks, and multi-day expeditions.

---

Best-in-Class Load Ratings for Work or Touring

With a 250kg dynamic load rating and 500kg static capacity (destruction-tested to 7.6 tonnes), this canopy supports serious loads—whether it’s rooftop tents, work ladders, recovery gear, or cargo platforms. Its strength-to-weight ratio makes it one of the most capable aluminium canopies in the dual cab ute category.

---

Advanced Dust and Weather Protection

Sealed with automotive-grade EPDM perimeter seals and featuring an integrated positive-pressure vent, this canopy keeps out fine dust and moisture in tough Australian terrain. Ideal for protecting tools, equipment, and camping gear in remote environments.

---

Built-In Security for High-Value Equipment

Solid aluminium gullwing side doors provide superior resistance to forced entry compared to traditional glass or plastic options. Each door includes twin dustproof compression locks, offering robust security for tools, valuables, or electronics.

---

Seamless Modular Accessory Integration

Designed to support the full CapRax accessory ecosystem, this canopy features dual full-length M8 roof channels and internal nutserts for bolt-on installation of roof racks, load bars, shelving, drop-down tables, solar panels, and other modular gear. The no-drill mounting system uses the Hilux factory tub points, preserving warranty and simplifying installation.

---

Designed for the Way Australians Work and Travel

Whether you’re building a work-ready dual cab ute for trade use or fitting out an off-road tourer, the Xpedition CapRax Canopy offers industry-leading versatility, strength, and compatibility with rooftop and internal accessories. It’s built for high-heat regions, red-dust environments, and heavy-duty field use—without compromising payload or performance.

---

Upgrade your Toyota Hilux Dual Cab with a canopy engineered for extreme conditions, modular builds, and serious utility.

Hilux 2015+ Dual Cab Xpedition Key Features

• Gullwing doors at sides and rear.
• Bonded toughened glass rear door with aluminium frame.
• Sliding window in at the front of the canopy (cab end)
• TIG-welded 2.5mm aluminium monocoque construction
• Weighs 74Kg
• Stylish rounded frame corners with heavy duty internal gussets
• Dynamic load rating of 250Kg
• Static load rating of 500kg
• Full extruded roof rails (M8 channel) for easy accessory mounting
• Integrated positive airflow vent at front of canopy
• Dust Proof Key-Alike Locks (2 locks per door)
• Easy mounting brackets that use existing factory mounts.
• 2-Year manufacturers warranty (see Warranty tab for details)
