Mazda BT-50 2011-2020 Dual Cab Xtreme Caprax Canopy by Rhinoman

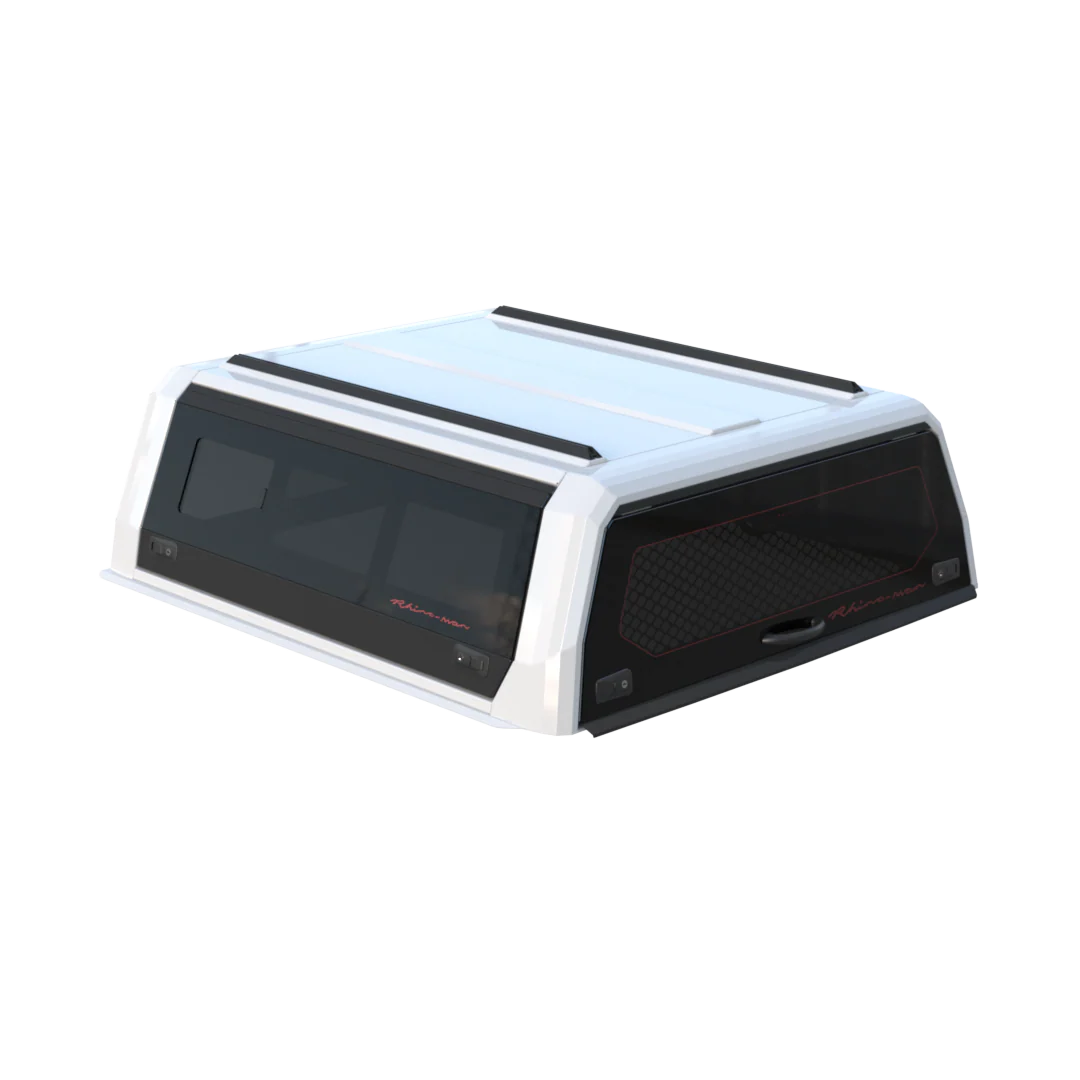

Mazda BT-50 2011–2020 Dual Cab Xtreme CapRax Canopy by Rhinoman

Premium Aluminium Canopy with Glass Gullwing Doors and Ventilation for BT-50 Dual Cab

The Xtreme CapRax Canopy by Rhinoman is engineered for the Mazda BT-50 2011–2020 dual cab, combining lightweight strength, superior load capacity, and glass gullwing side doors with sliding ventilation windows. Built from 2.5mm TIG-welded aluminium and weighing only 78kg, this canopy offers unmatched durability, airflow functionality, and compatibility with CapRax modular accessories. Whether you're outfitting for touring, trade, or remote transport, this canopy delivers proven performance and structural integrity for harsh Australian conditions.

---

Strong Yet Lightweight Aluminium Design

Constructed using a fully TIG-welded aluminium monocoque body with internal gussets and a powder-coated finish, the canopy delivers optimal torsional strength without excess weight. At just 78kg, it preserves vehicle payload and ensures stable handling over rough tracks and worksites.

---

Class-Leading Roof Load Ratings

Rated for a 250kg dynamic roof load and 500kg static capacity, the Xtreme CapRax canopy is independently destruction-tested to withstand over 7.6 tonnes of static roof pressure. This makes it ideal for rooftop tents, recovery gear, and heavy touring loads where reliability matters.

---

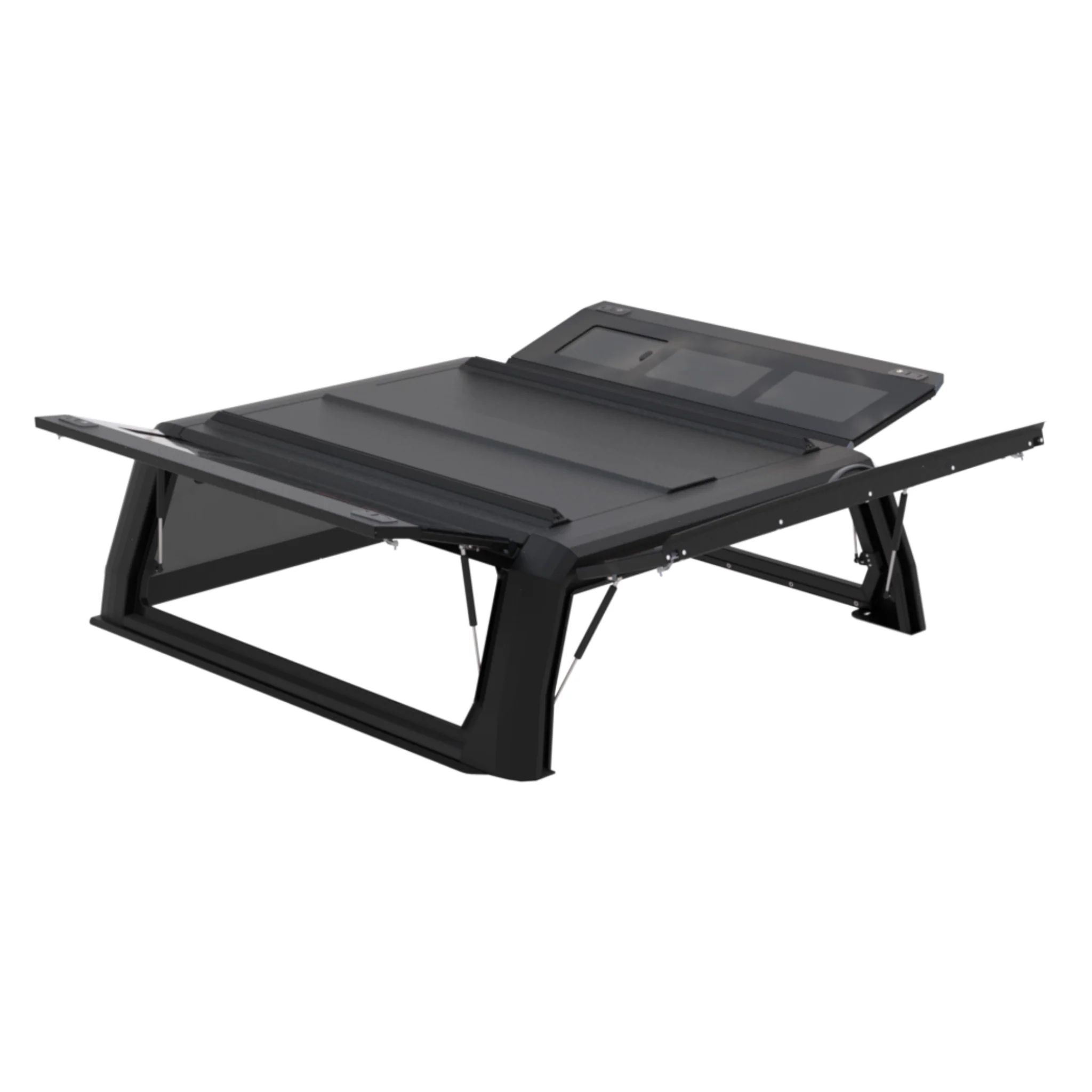

Glass Gullwing Doors with Integrated Sliding Windows

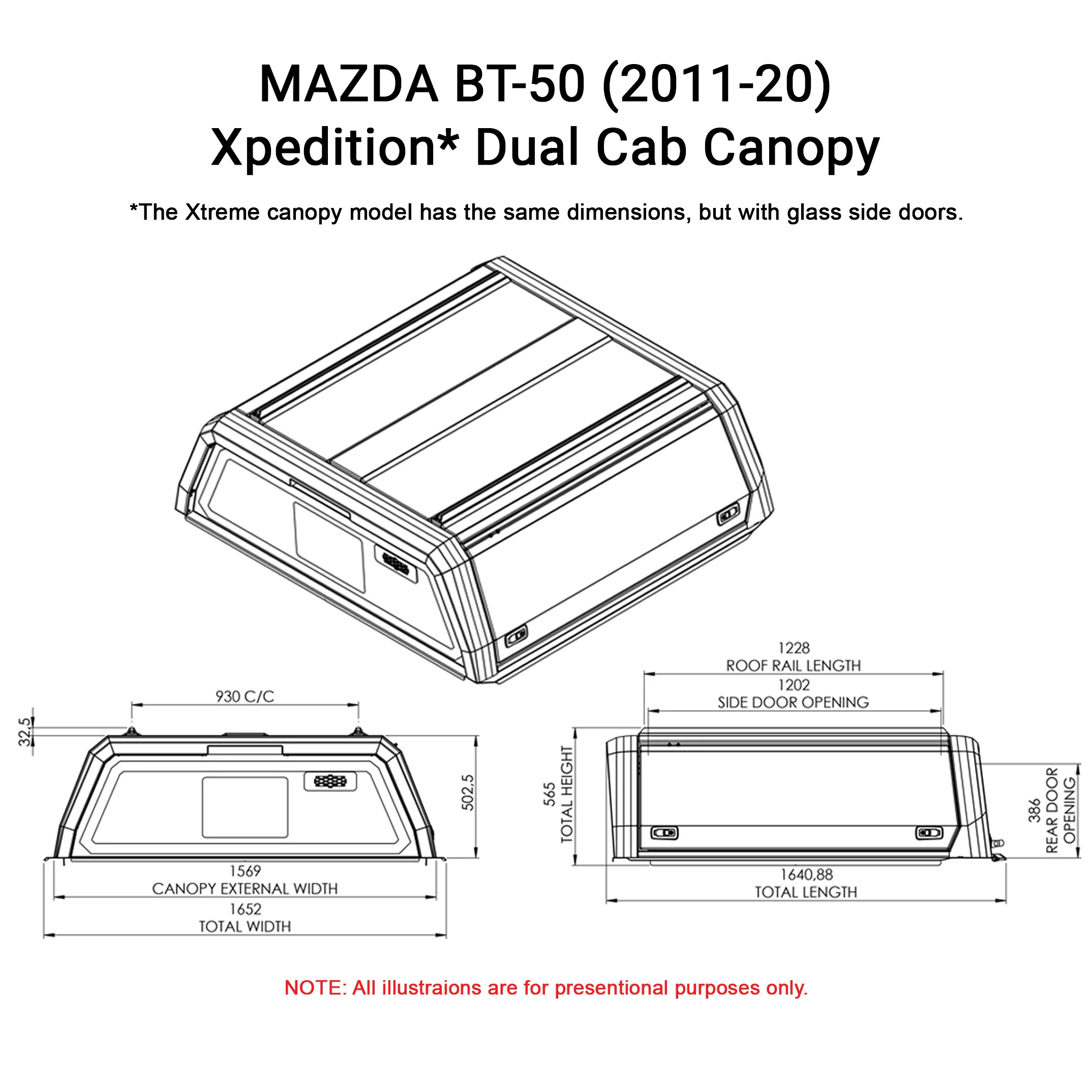

Bonded toughened glass gullwing 1202mm wide side doors provide secure access to internal gear, tools, or pet compartments. Each door features a 250mm wide sliding window for controlled ventilation—ideal for animal transport, temperature-sensitive cargo, or airflow during travel.

---

Dust and Weather Protection for Remote Travel

The canopy is sealed with automotive-grade EPDM bulb seals around all doors and windows. A forward-facing positive-pressure vent actively reduces dust ingress by maintaining internal airflow during driving—critical for remote off-road and station travel.

---

Modular Accessory Integration with CapRax Ecosystem

Designed for full compatibility with the CapRax system, the canopy includes twin 1228mm M8 roof extrusion channels, this supports bolt-on installation of:

• Rooftop tents
• Roof racks
• Load bars
• Solar panels


In addition there are internal nutserts and extruded channels for mounting the any of the CapRax modular accessory range including:

• Shelf units
• Drop down camping tables
• Storage racks and slides

No cutting or drilling is required to mount accessories, enabling clean, efficient customisation for trade or touring builds.

---

Fast, No-Drill Installation on Mazda BT-50 Dual Cabs

The canopy mounts directly to the factory tub anchor points of Mazda BT-50 2011–2020 dual cabs using supplied brackets—no drilling required. This preserves the vehicle’s OEM condition and enables future removal or transfer to compatible vehicles without structural modification.

---

Built for Trades, Tourers, and Remote Operators

With sliding ventilation windows, bonded glass panels, and proven load integrity, this canopy is ideal for:

• Touring setups with tents and awnings
• Trade vehicles requiring secure, ventilated storage
• Animal transport requiring airflow
• Dust-prone environments such as remote tracks or outback stations

---

Optimised for How Australians Work and Travel

This canopy meets the needs of high-demand users—whether you're heading off-grid, securing high-value gear, or meeting animal airflow compliance. Lightweight, secure, and modular by design, the Xtreme CapRax canopy sets a new standard for BT-50 canopy performance in Australia.

---

Equip your Mazda BT-50 Dual Cab with an aluminium canopy designed for real-world utility, airflow, and tested strength in the toughest conditions.

Mazda BT-50 2011-2020 Dual Cab Xtreme Key Features

• Gullwing doors at sides and rear.
• Side doors have aluminium frame and bonded glass with sliding windows.
• Bonded toughened glass rear door with aluminium frame.
• Sliding window in at the front of the canopy (cab end)
• 100% automotive grade aluminium construction
• Weighs 78Kg
• Stylish rounded frame corners with heavy duty internal gussets
• Dynamic load rating of 250Kg
• Static load rating of 500kg
• Full extruded roof rails (M8 channel) for easy accessory mounting
• Integrated positive airflow vent at front of canopy
• Dust Proof Key-Alike Locks (2 locks per door)
• Rear brake light In rear window (needs to be wired into vehicle)
• Easy mounting brackets that use existing factory mounts.
• 2-Year manufacturers warranty (see Warranty tab for details)
