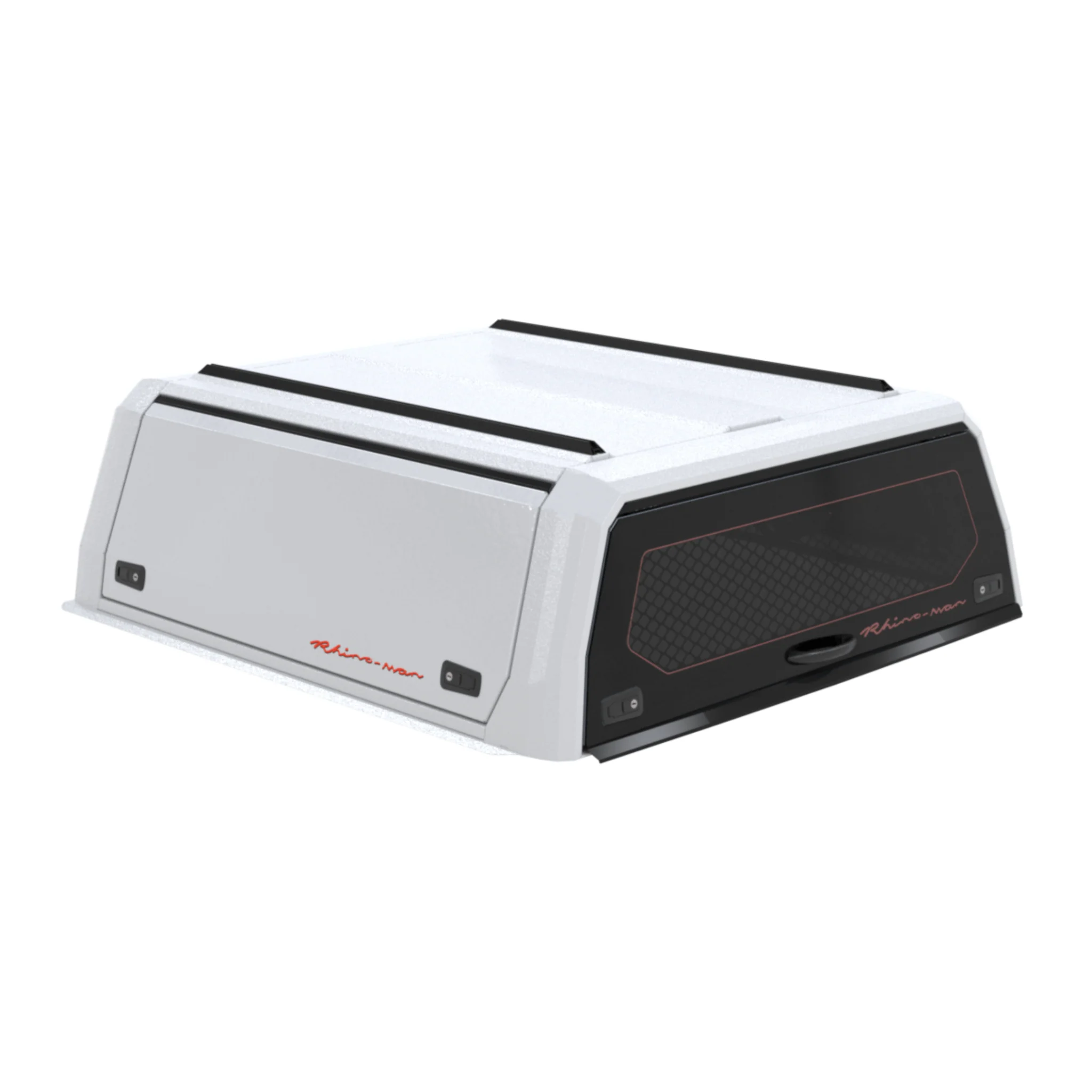

Mazda BT-50 2011–2020 Dual Cab Xpedition CapRax Canopy by Rhinoman
Lightweight Aluminium Canopy with High Load Capacity and Secure Modular Design
Designed for the Mazda BT-50 2011–2020 dual cab, the Xpedition CapRax Canopy by Rhinoman delivers a rugged, lightweight, and highly modular canopy solution. Built from 2.5mm TIG-welded aluminium and weighing just 74kg, this canopy supports a 250kg dynamic roof load while offering secure, dust-sealed gullwing access and compatibility with the CapRax modular accessory ecosystem. Built for trades, touring, and remote conditions, it combines structural integrity with unmatched accessory flexibility.
Strong, Lightweight Aluminium Construction
Crafted from automotive-grade 2.5mm aluminium, the canopy features a TIG-welded monocoque body with reinforced internal gussets. The powder-coated finish ensures corrosion resistance in coastal, industrial, or desert conditions. At just 74kg, it offers a high strength-to-weight ratio, reducing impact on vehicle payload and fuel economy.
Market-Leading Roof Load Ratings
Engineered for heavy loads, rooftop tents, recovery gear, and solar setups, the canopy supports a 250kg dynamic and 500kg static roof load. It has been destruction-tested to 7.6 tonnes—providing confidence under load when off-road or on remote job sites.
Secure Solid Gullwing Side Access

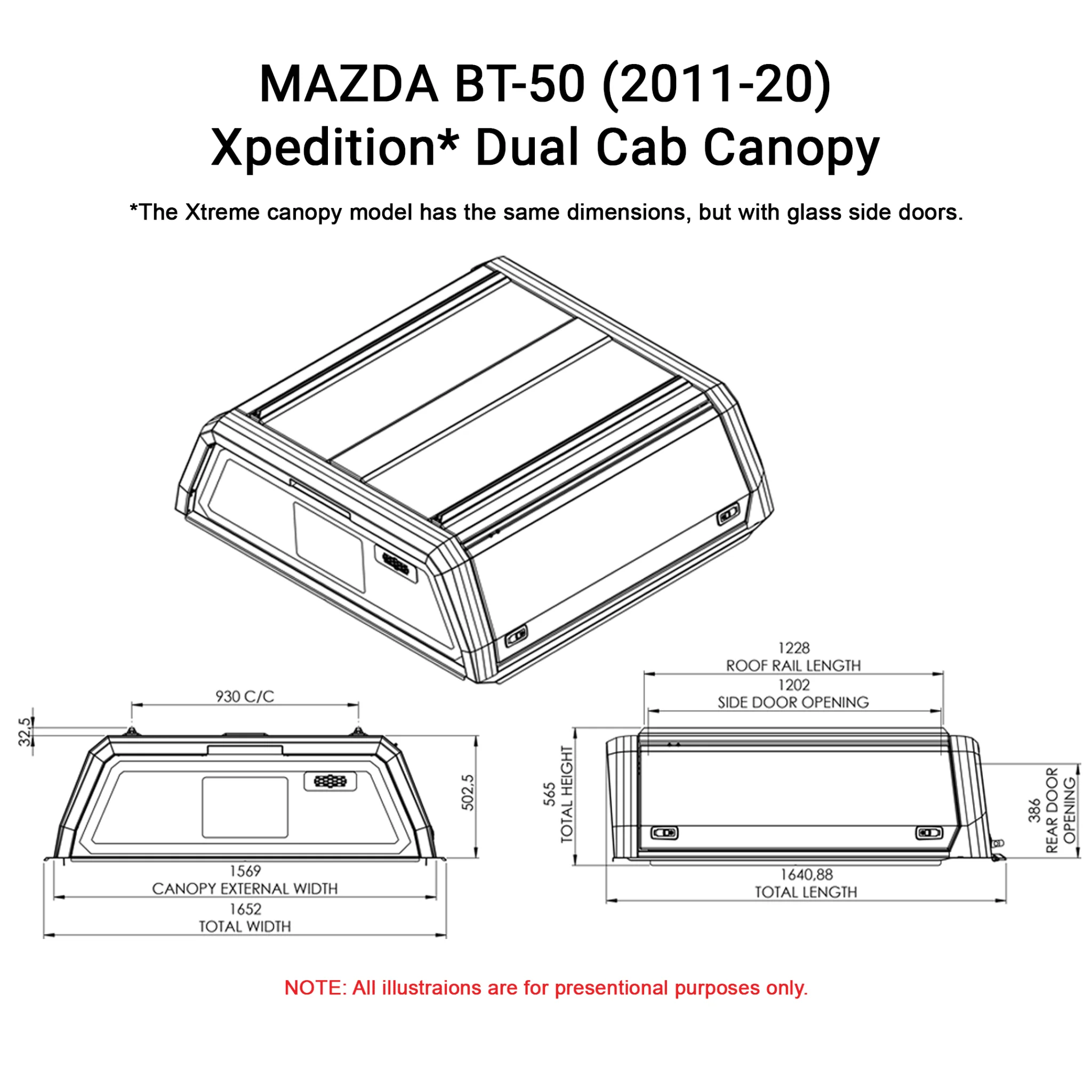

Each side door covers a 1202mm wide opening and is made from solid aluminium with twin keyed-alike compression locks to protect tools, gear, and valuables. The gullwing design allows easy access even when fully loaded, while the rear door provides additional entry through the back.
Dustproof and Weather-Sealed for Remote Use
Automotive-grade EPDM bulb seals are fitted to all openings for superior protection against dust and water. A forward-facing positive-pressure vent maintains internal airflow while driving, significantly reducing bulldust ingress on unsealed roads.
Modular Accessory Integration with CapRax Ecosystem
Designed for full compatibility with the CapRax system, the canopy includes twin 1228mm long M8 roof extrusion channels, this supports easy bolt-on installation of rooftop tents, roof racks, and load bars.
In addition there are internal nutserts and extruded channels for mounting the any of the CapRax modular accessory range including, side shelf units, drop down camping tables, and storage racks/slides.
No cutting or drilling is required to mount accessories, enabling clean, efficient customisation for trade or touring builds.
Fast, No-Drill Installation on Mazda BT-50 Dual Cabs
The canopy mounts directly to the factory tub points of the Mazda BT-50 2011–2020 dual cab using stainless steel brackets—no drilling required. This ensures warranty-safe installation and enables easy removal or transfer between compatible vehicles.
Built for Utility, Touring, and Fleet Use
Whether you're fitting out a touring rig, securing high-value tools, or operating in remote environments, this canopy is designed for real-world durability. It suits:
- Tradespeople needing secure rooftop and internal gear storage
- Overlanders requiring rooftop tent compatibility and reliability
- Commercial and fleet vehicles needing modular, non-permanent setups
Optimised for How Australians Work and Travel
With high roof capacity, lightweight aluminium strength, and full accessory compatibility, the Mazda BT-50 Dual Cab Xpedition CapRax Canopy is built to meet the demands of Australian trades, overlanding, and remote operations. It offers the durability and flexibility required for touring builds, commercial work, and custom canopy setups—without compromising vehicle performance or installation simplicity.
Outfit your BT-50 with a canopy engineered for strength, security, and modular performance in any terrain.
Mazda BT-50 2011-2020 Dual Cab Xpedition Key Features
- Gullwing doors at sides and rear.
- Bonded toughened glass rear door with aluminium frame.
- Sliding window in at the front of the canopy (cab end)
- 100% automotive grade aluminium construction
- Weighs 74Kg
- Stylish rounded frame corners with heavy duty internal gussets
- Dynamic load rating of 250Kg
- Static load rating of 500kg
- Full extruded roof rails (M8 channel) for easy accessory mounting
- Integrated positive airflow vent at front of canopy
- Dust Proof Key-Alike Locks (2 locks per door)
- Rear brake light In rear window (needs to be wired into vehicle)
- Easy mounting brackets that use existing factory mounts.
- 2-Year manufacturers warranty (see Warranty tab for details)
