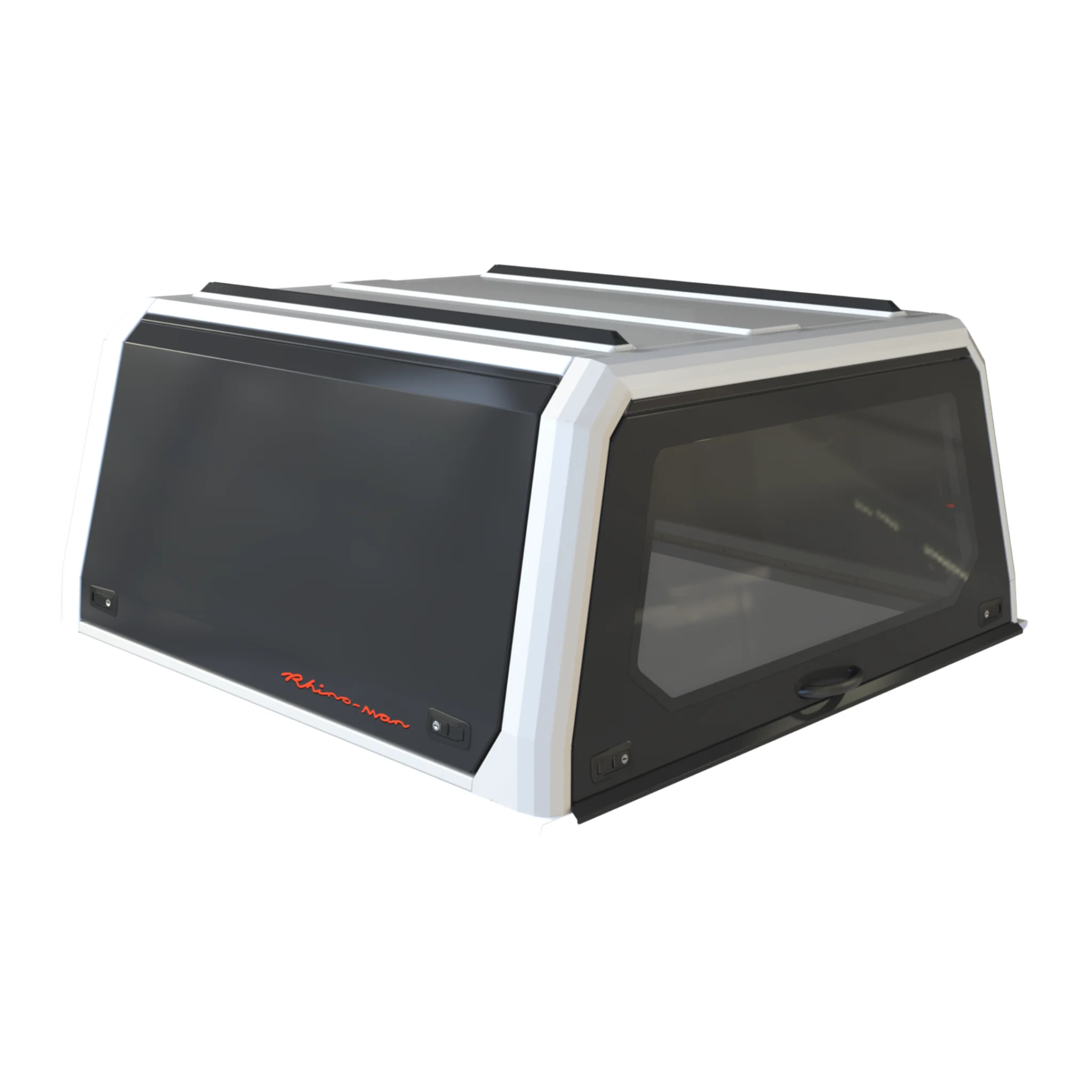

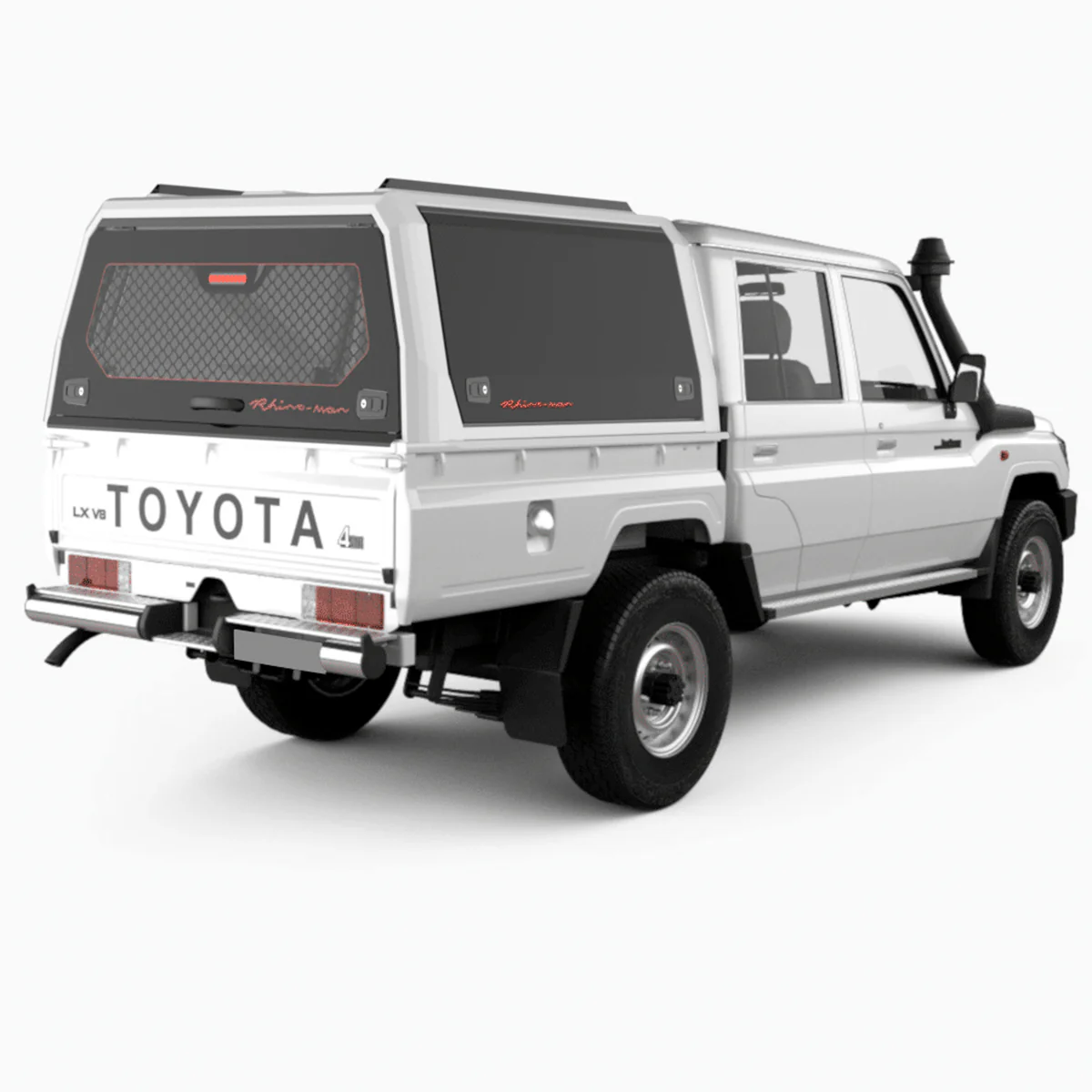

Landcruiser 70 Series Dual Cab Xpedition Caprax Canopy by Rhinoman

LandCruiser 70 Series Dual Cab Xpedition CapRax Canopy by Rhinoman

Heavy-Duty Aluminium Canopy Built for Commercial, Mining, and Expedition Use

Purpose-built for the Toyota LandCruiser 70 Series Dual Cab, the Xpedition CapRax Canopy by Rhinoman delivers industry-leading strength, platform-specific engineering, and modular accessory integration for the most demanding Australian conditions. Weighing 89kg and rated for a 250kg dynamic roof load, this fully TIG-welded aluminium canopy combines structural durability with class-leading load capacity—making it ideal for overlanding builds.

---

Engineered for the LandCruiser 70 Series Platform

This canopy is not a universal fit—it is precision-engineered for the Toyota LC70 dual cab. With a form-fitted design, it bolts directly to the factory tub rails. This ensures superior structural integrity, professional-grade installation, and compatibility with the rugged architecture of the LandCruiser platform.

---

TIG-Welded Aluminium Strength and Corrosion Resistance

Constructed from 2.5mm automotive-grade aluminium, the Xpedition canopy features a monocoque structure with reinforced gussets and fully welded seams. The powder-coated finish resists corrosion in coastal, desert, and high-wear environments. At 89kg, it offers robust durability while maintaining reasonable vehicle payload for touring or trade use.

---

Market-Leading Roof Load Performance

The canopy supports a 250kg dynamic roof load and 500kg static load, verified by a 7.6-tonne destruction test—providing a significant safety margin for rooftop tents, recovery gear, and heavy tools. This makes it one of the most capable roof-bearing canopies available for the 70 Series platform.

---

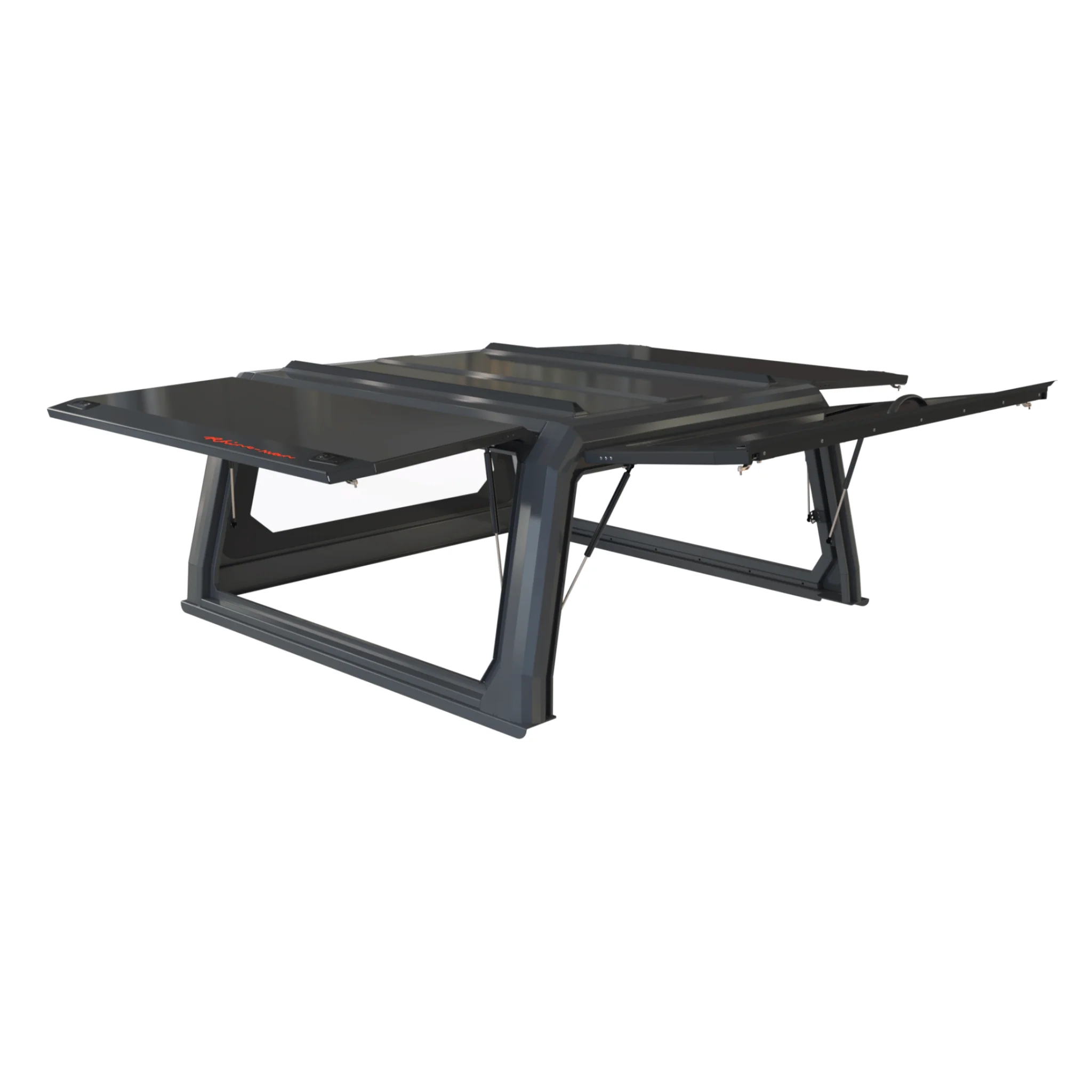

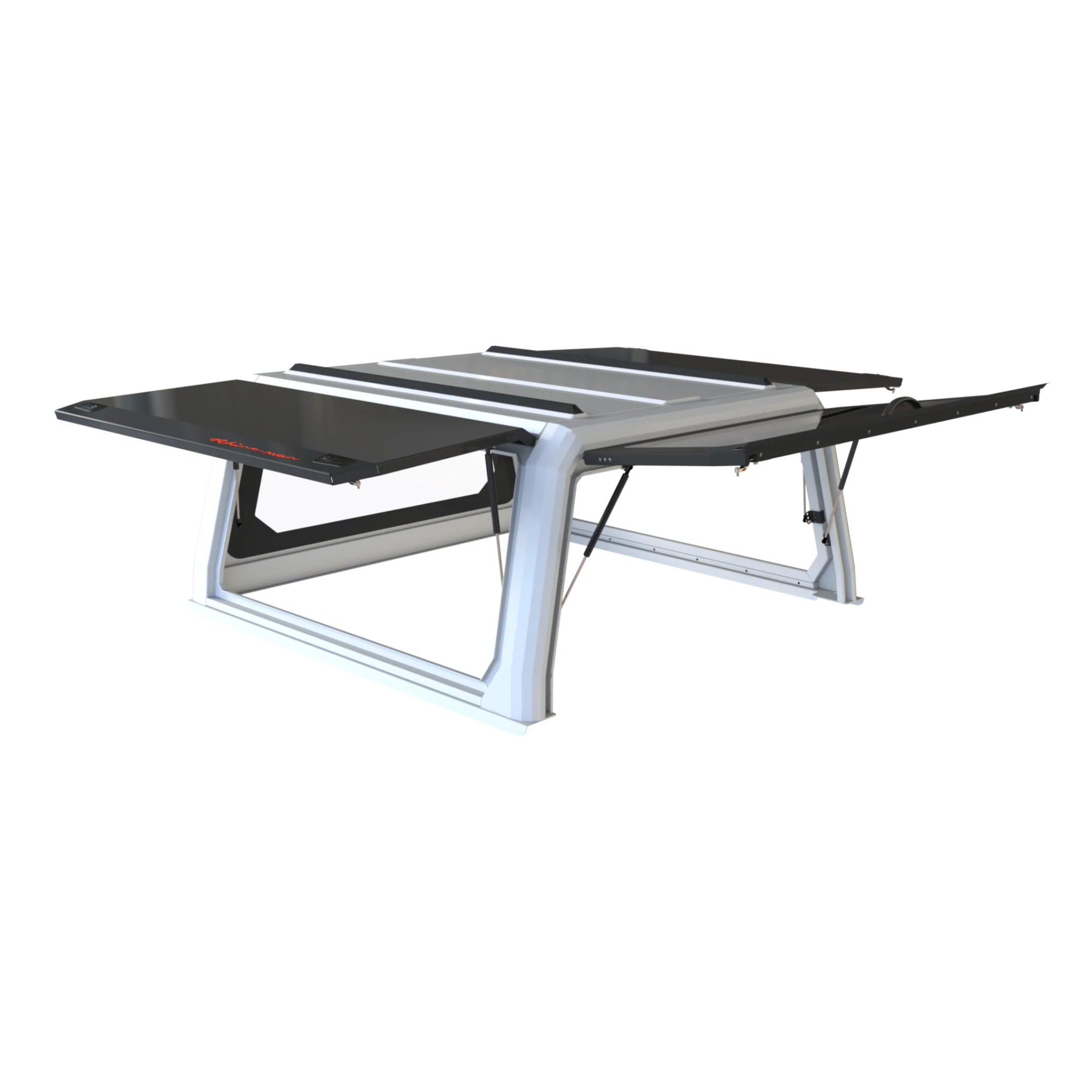

Solid Aluminium Gullwing Doors for Maximum Security

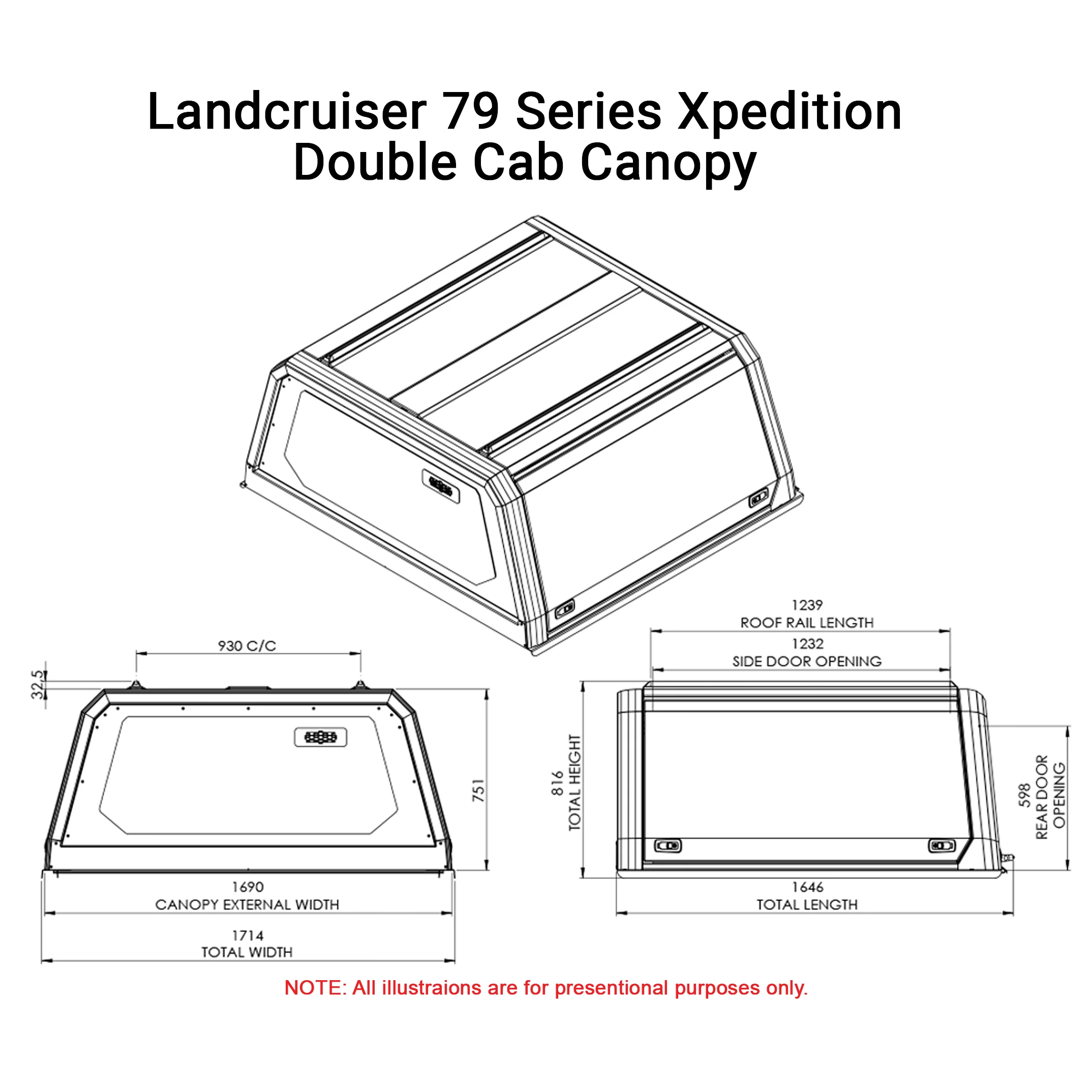

Fitted with solid aluminium gullwing side doors and a bonded rear door, this canopy is designed for high-security storage. The side openings are 1232mm wide and 598mm high providing great access to internal fit outs. Each door includes twin compression locks and full perimeter EPDM dust seals to protect tools, equipment, or expedition cargo. The solid design offers superior resistance to forced entry and eliminates the vulnerability of glass windows in remote or high-risk environments.

---

Dust Control and Weather Sealing for Harsh Conditions

The canopy includes a forward-facing positive-pressure vent and full 360° automotive-grade EPDM bulb seals. This system reduces dust ingress during travel on unsealed roads and protects contents from rain, mud, and environmental debris—ideal for off-road, mining, and long-haul applications.

---

Modular Accessory Integration with CapRax Ecosystem

Designed for full compatibility with the CapRax system, the canopy includes twin 1239mm M8 roof extrusion channels, this supports bolt-on installation of rooftop tents, roof racks, and load bars

In addition there are internal nutserts and extruded channels for mounting the any of the CapRax modular accessory range including, side shelf units, drop down camping tables, and storage racks/slides.

No cutting or drilling is required to mount accessories, enabling clean, efficient customisation for trade or touring builds.

---

Built for Real-World Commercial and Remote Deployment

The LandCruiser 70 Series is trusted in Australia’s harshest environments, and this canopy is built to match. From remote mining contracts to overland expeditions and government field operations, the Xpedition CapRax delivers secure, load-ready performance backed by destruction-tested strength and long-term durability.

---

Optimised for High-Demand LandCruiser Applications

This canopy aligns with high-volume Australian search behaviour for keywords such as LandCruiser canopy, 70 Series dual cab canopy, heavy duty ute canopy, and aluminium canopy for 79 Series. Whether you’re building a remote area work vehicle or a fully kitted expedition rig, this canopy offers tested performance, long-term reliability, and seamless accessory integration.

---

Equip your 70 Series Dual Cab with a canopy engineered for proven strength, security, and full system integration—ready for work, the outback, or the unknown.

Landcruiser 70 Series Dual Cab Xpedition Key Features

• Gullwing doors at sides and rear.
• Bonded toughened glass rear door with aluminium frame.
• Sliding window in at the front of the canopy (cab end)
• 100% automotive grade aluminium construction
• Weighs 89Kg
• Stylish rounded frame corners with heavy duty internal gussets
• Dynamic load rating of 250Kg
• Static load rating of 500kg
• Full extruded roof rails (M8 channel) for easy accessory mounting
• Integrated positive airflow vent at front of canopy
• Dust Proof Key-Alike Locks (2 locks per door)
• Rear brake light In rear window (needs to be wired into vehicle)

• 2-Year manufacturers warranty (see Warranty tab for details)
